SupportManager
Supports management and automatic drawings in Aveva E3D
Manage your supports with disconcerting ease

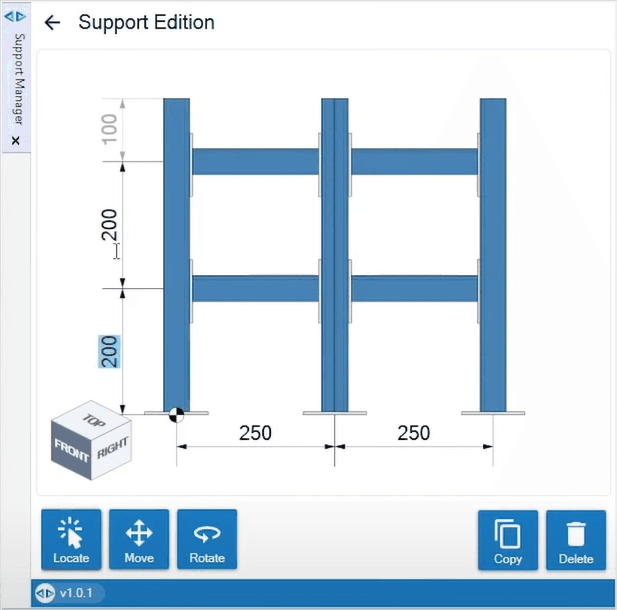

SupportManager allows you to create and edit supports based on Standards: • Model a Template for each of your support standards • Create dynamic dimensions for each adjustable length • Insert and edit supports in your model The solution includes a 2D interactive view that allows controlling the different adjustable dimensions of each support.
Automatic drawing generation and exports

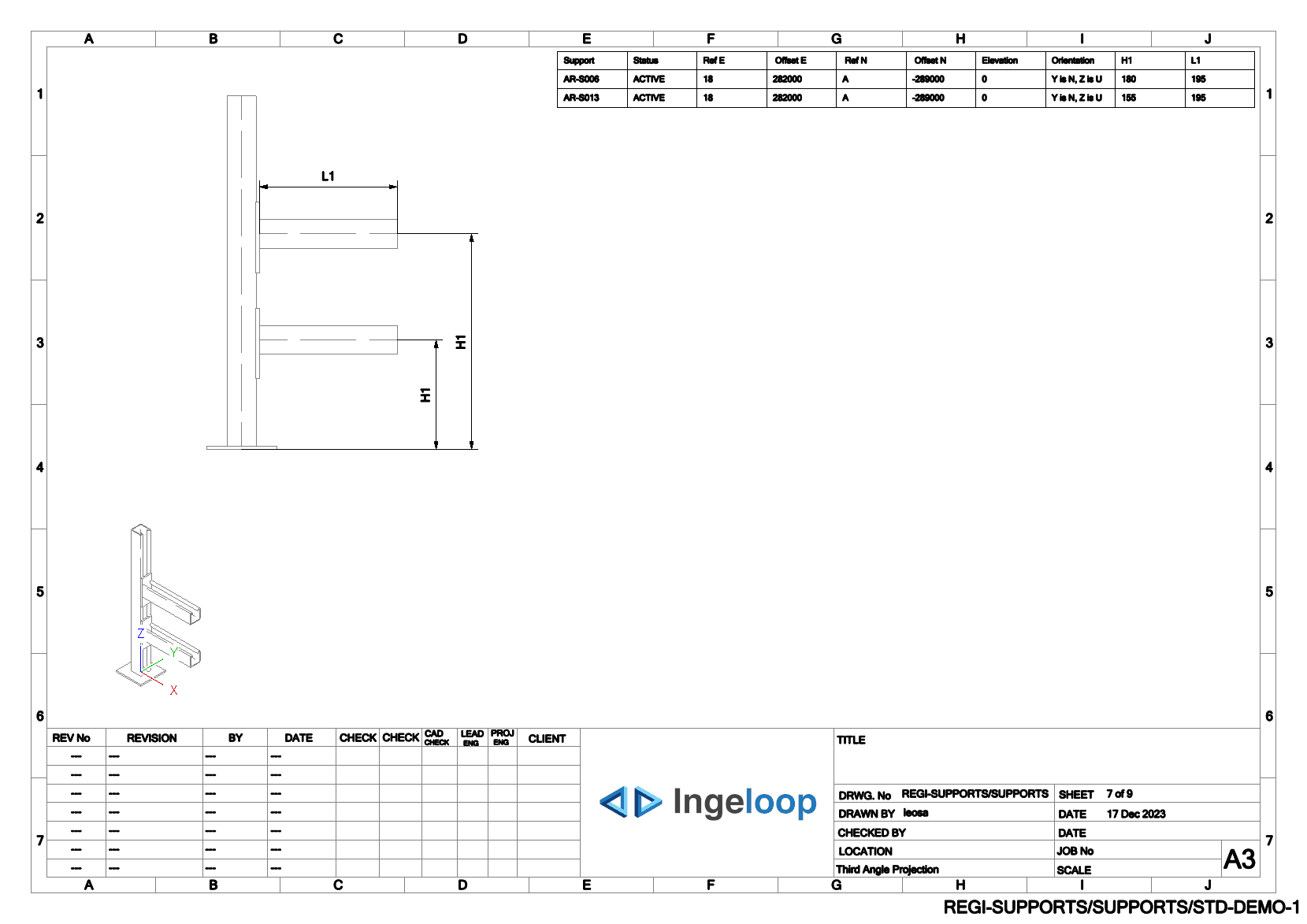

Generate complete support drawings in Aveva Draw with just a few clicks: • Automatic creation of views • Representation of the standard, and identification of its adjustable dimensions • Generation of tables displaying all the supports of the model with their respective dimensions Representation rules, title block filling, table information, view arrangement, are fully configurable according to projects. The different data of the supports present in the model can also be exported to various formats, such as Excel.
Tiers
SupportManager is only available in the 'Enterprise' version. Don't hesitate to get in touch to get more information.
Tailored solutions to suit your enterprise needs
Dedicated support
Development of specific functions
Assistance with project-specific configuration creation
